Vulnerability analysis

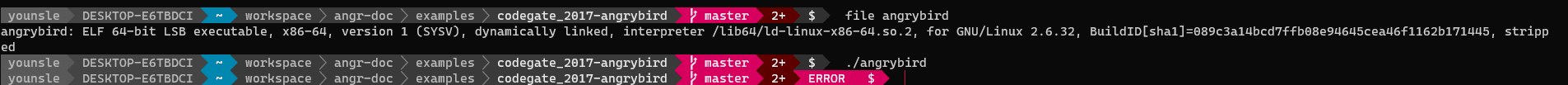

Running Angry Bird

The binary prints nothing and exits immediately.

main

Stack smashing protection is on. The prologue pulls a canary from the TEB into rax and stores it on the stack. Then eax is cleared, compared to zero, and the path jumps to exit. That is why a normal run ends at once.

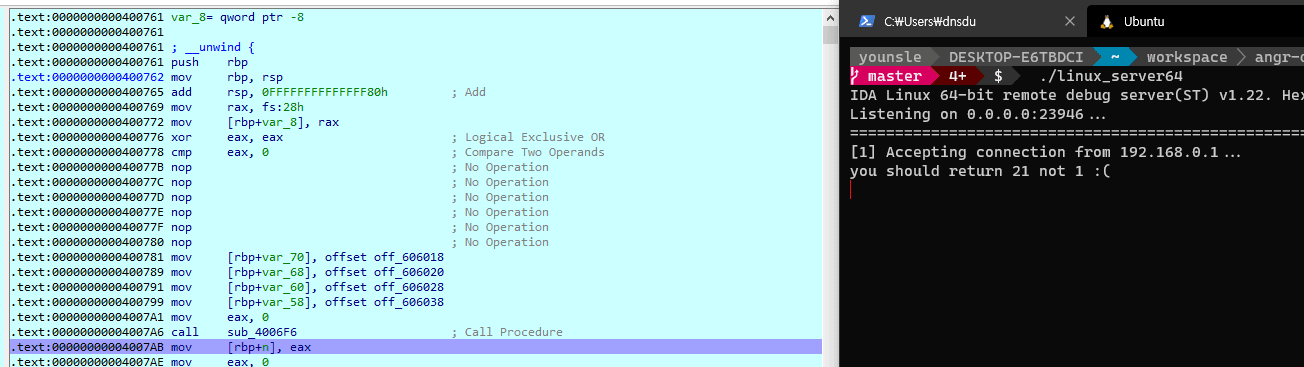

NOP sled past exit

Patch the _exit bytes to 90 (NOP) so the jump cannot terminate the process.

After that bypass, the binary reaches the string you should return 21 not 1 :( .

you should return 21 not 1 :(

The message says the return value must be 21. Dig into that path next.

sub_4006F6

Inside the block that printed the message, check dword_606060.

It holds 1. Patch it to 21.

The return value is then written with a mov into [rbp+n]. Operand 2 is eax (32-bit), so a mismatched width triggers a segfault.

NOP that store out. Do the same for sub_40070C.

sub_40072A

This function compares input against "hello" and only continues on a match. 0x606038 turned out to be a GOT slot for __libc_start_main; Ghidra helped clarify which string comparison was happening.

NOP that check as well.

Filled solid. 😀

After the patches, fgets finally accepts input.

The long condition chain

Many conditions sit between input and the final "you typed : %s\n" path.

Use angr to solve for the input.

Solution

Solved code

import angr

def solved():
    p=angr.Project('./angrybird_3', auto_load_libs=False)
		# state를 임의로 위 함수를 무시한채 해당 지역부터 시작하도록 한다.
    state = p.factory.blank_state(addr=0x4007C2)

    sm = p.factory.simgr(state)
    sm.explore(find=0x404fab) # 최하단 True 주소 값

    flag = sm.found[0].posix.dumps(0)
    print(flag[:20])

Solved code 2

You can also skip the binary patches and let angr start mid-function.

Ignore sub_4006F6 / sub_40070C, set rbp as if the prologue had run at 0x4007c2, and seed the locals the later checks expect.

import angr

START_ADDR = 0x4007c2
FIND_ADDR = 0x404fab  # This is right before the printf

def main():
    proj = angr.Project('./angrybird')

    # 해당 바이너리에서 함수 부분을 우회 한다.
    state = proj.factory.entry_state(addr=START_ADDR)
    # 함수 프롤로그 변경
    state.regs.rbp = state.regs.rsp
    # 0x40의 길이 값
    state.mem[state.regs.rbp - 0x74].int = 0x40

    state.mem[state.regs.rbp - 0x70].long = 0x1000 # strncmp@got
    state.mem[state.regs.rbp - 0x68].long = 0x1008 # puts@got
    state.mem[state.regs.rbp - 0x60].long = 0x1010 # _stack_chk_fail@got
    state.mem[state.regs.rbp - 0x58].long = 0x1018 # _lib_start_main

    sm = proj.factory.simulation_manager(state)  # 시뮬레이션 생성
    sm.explore(find=FIND_ADDR)

    found = sm.found[-1]
    flag = found.posix.dumps(0)

    print(flag[:20])

if __name__ == '__main__':
    main()
