TLS (Thread Local Storage) Callbacks

How Windows PE TLS directories and IMAGE_TLS_CALLBACK hooks run before the entry point, and why reverse engineers care for anti-debugging.

Thread Local Storage (TLS)

Every thread in a process shares the same virtual address space.
A function's locals are per calling thread; statics and globals are shared across the process.
TLS gives each thread its own storage so process-wide global or static data can behave like thread-local data when you need isolation.

IMAGE_DATA_DIRECTORY[9]

The PE header's TLS Table entry points here.
IMAGE_NT_HEADERS → IMAGE_OPTIONAL_HEADER → IMAGE_DATA_DIRECTORY[9]

{: width="65%" height="65%"}

At RVA 01AAF3A0 sits an IMAGE_TLS_DIRECTORY structure.

IMAGE_TLS_DIRECTORY

typedef struct _IMAGE_TLS_DIRECTORY64 {
    ULONGLONG StartAddressOfRawData;
    ULONGLONG EndAddressOfRawData;
    ULONGLONG AddressOfIndex;         // PDWORD
    ULONGLONG AddressOfCallBacks;     // PIMAGE_TLS_CALLBACK *;
    DWORD SizeOfZeroFill;
    union {
        DWORD Characteristics;
        struct {
            DWORD Reserved0 : 20;
            DWORD Alignment : 4;
            DWORD Reserved1 : 8;
        } DUMMYSTRUCTNAME;
    } DUMMYUNIONNAME;

} IMAGE_TLS_DIRECTORY64;

typedef IMAGE_TLS_DIRECTORY64 * PIMAGE_TLS_DIRECTORY64;

typedef struct _IMAGE_TLS_DIRECTORY32 {
    DWORD   StartAddressOfRawData;
    DWORD   EndAddressOfRawData;
    DWORD   AddressOfIndex;             // PDWORD
    DWORD   AddressOfCallBacks;         // PIMAGE_TLS_CALLBACK *
    DWORD   SizeOfZeroFill;
    union {
        DWORD Characteristics;
        struct {
            DWORD Reserved0 : 20;
            DWORD Alignment : 4;
            DWORD Reserved1 : 8;
        } DUMMYSTRUCTNAME;
    } DUMMYUNIONNAME;

} IMAGE_TLS_DIRECTORY32;
typedef IMAGE_TLS_DIRECTORY32 * PIMAGE_TLS_DIRECTORY32;

#ifdef _WIN64
#define IMAGE_ORDINAL_FLAG              IMAGE_ORDINAL_FLAG64
#define IMAGE_ORDINAL(Ordinal)          IMAGE_ORDINAL64(Ordinal)
typedef IMAGE_THUNK_DATA64              IMAGE_THUNK_DATA;
typedef PIMAGE_THUNK_DATA64             PIMAGE_THUNK_DATA;
#define IMAGE_SNAP_BY_ORDINAL(Ordinal)  IMAGE_SNAP_BY_ORDINAL64(Ordinal)
typedef IMAGE_TLS_DIRECTORY64           IMAGE_TLS_DIRECTORY;
typedef PIMAGE_TLS_DIRECTORY64          PIMAGE_TLS_DIRECTORY;
#else
#define IMAGE_ORDINAL_FLAG              IMAGE_ORDINAL_FLAG32
#define IMAGE_ORDINAL(Ordinal)          IMAGE_ORDINAL32(Ordinal)
typedef IMAGE_THUNK_DATA32              IMAGE_THUNK_DATA;
typedef PIMAGE_THUNK_DATA32             PIMAGE_THUNK_DATA;
#define IMAGE_SNAP_BY_ORDINAL(Ordinal)  IMAGE_SNAP_BY_ORDINAL32(Ordinal)
typedef IMAGE_TLS_DIRECTORY32           IMAGE_TLS_DIRECTORY;
typedef PIMAGE_TLS_DIRECTORY32          PIMAGE_TLS_DIRECTORY;
#endif

IMAGE_TLS_DIRECTORY comes in x86 and x64 shapes.

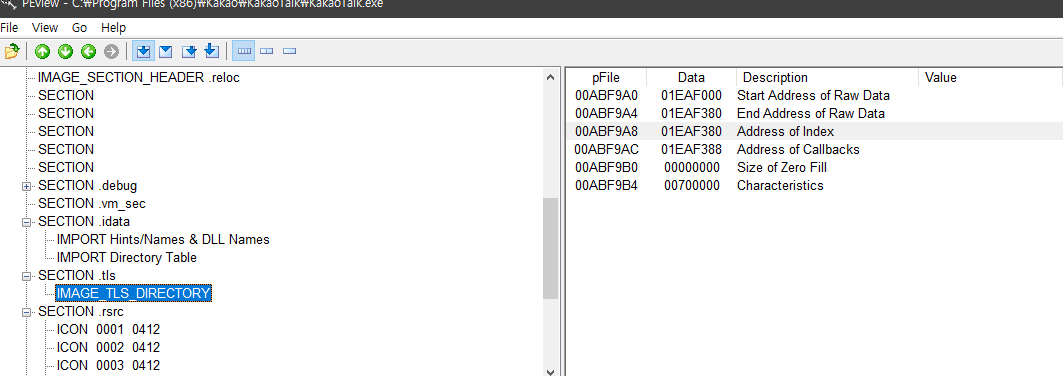

Looking at the members at RVA 01AAF3A0:
AddressOfCallbacks points at an array of TLS callback addresses (as VAs). The array ends with NULL.
A program can register more than one TLS callback.
When the process starts, before entry-point code runs, the system calls each function listed in that array.

TLS callback function

Reverse engineers see TLS callbacks most often as an anti-debugging technique.
They run before the entry point (EP).
The loader also invokes them when threads are created or destroyed.
That includes the process main thread, so callbacks fire before EP code — which is why anti-debug tooling leans on them.
Per thread: once on create, once on exit.

IMAGE_TLS_CALLBACK

typedef VOID
(NTAPI *PIMAGE_TLS_CALLBACK) (
    PVOID DllHandle,
    DWORD Reason,
    PVOID Reserved
    );

The signature looks a lot like DllMain().

DllMain()

BOOL WINAPI DllMain(
    HINSTANCE hinstDLL,  // handle to DLL module
    DWORD fdwReason,     // reason for calling function
    LPVOID lpReserved )  // reserved

Parameter order and meaning match.
DllHandle is the module handle / load address.

Reason says why the callback ran:

#defind DLL_PROCESS_ATTACH  1
#define DLL_THREAD_ATTACH   2
#define DLL_THREAD_DETACH   3
#DEFINE DLL_PROCESS_DETACH  0

DLL_PROCESS_ATTACH

Before the main thread reaches main, registered TLS callbacks run with Reason = 1 (DLL_PROCESS_ATTACH).

DLL_THREAD_ATTACH

After those callbacks finish, main runs.
When a user thread is created, TLS callbacks run again with Reason = 2 (DLL_THREAD_ATTACH).

DLL_THREAD_DETACH

Once those callbacks return, the thread's start function runs.
When that thread exits, TLS callbacks fire with Reason = 3 (DLL_THREAD_DETACH).

DLL_PROCESS_DETACH

After user threads finish and the main thread exits, TLS callbacks run one last time with Reason = 0 (DLL_PROCESS_DETACH).
